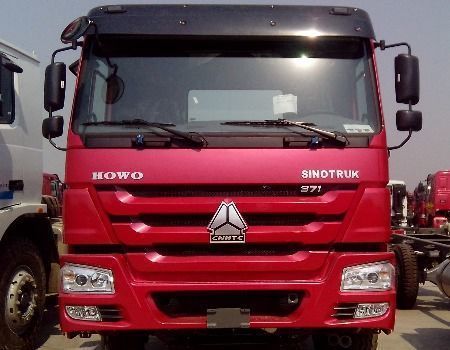

Sinotruck Howo 10 Wheeler Dump Truck

Product Description Of 10 Wheeler Dump Truck

dump truck (known in the UK as a dumper/tipper truck) is a truck used for transporting loose material (such as sandgravel, or demolition waste) for construction. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic rams to lift the front, allowing the material in the bed to be deposited (“dumped”) on the ground behind the truck at the site of delivery. In the UK, Australia and India the term applies to off-road construction plant only, and the road vehicle is known as a tipper,tipper lorry (UK, India) or tip truck (AU).

 Trailer Parameters

Truck ModelZZ3257N3647A  (LHD)
Truck BrandSINOTRUK-HOWO
Dimension(Lx W xH)(unloaded)(mm)8214x2496x3386
Cargo body size (L*W*H, mm(mm)5400x2300x1500
Cargo body thickness(mm)bottom:8mm, side:6mm,
Lift type of CarriageVentral lifting
Approaching angle/Departure angle(°) 19/26
Overhang(front/rear) (mm)1500/1739
Wheel base (mm)3625+1350
Max speed(km/h)75
Curb weight(kg)12290
Loading Weight(kg)30000
Fuel tanker capacity (L)300L with locking fuel cap
Fuel consumption(L/100km)32
ClutchSingle-plate dry clutch Φ420mm
Engine Model(Steyr technology, made in China)ModelWD615.69,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and intercooling
Horse Power, max(kw/rpm)336HP
Emission StandardEUROII
Transmission ModelHW 15710,10 forwards and 2 reverse

Sinotruck Howo 10 Wheeler Dump Truck

Sinotruck-Howo-10-Wheeler-dump-truck

Key Specifications/Special Features:

Sinotruck Howo 6×4 dump truck
Engine: WD615.69,336HP Euro 2 emission
Gearbox: HW19710
Cabin: HW76,A/C,One bed
Front Axle: HR9,9 Tons Loading
Driving Axle: HC16,16*2 Tons Loading
Cargobox: 5400*2300*1500mm,bottom 8mm, side 6mm.

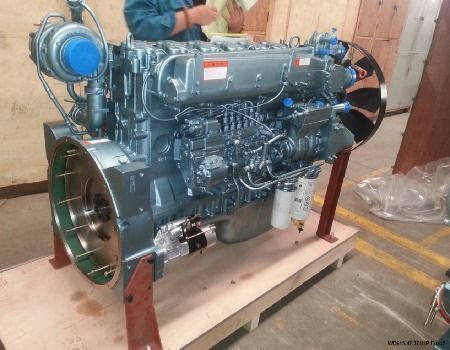

Engine Details
  1. 4 stroke direct injection diesel engine,9.726L
  2. WD615.69, Euro 2 emission standard 6-cylinder in- line with water cooling,turbo-charging and inter-cooling
  3. 336HP (247kw)at 2200rpm
  4. 1350Nm at 1100-1600rpm
Cabin

HW76 cabin, one sleeper,VOLVO Technology

Up and down, left and right sides Adjustable steering wheel;

European new type heater as a whole;

Germany (VDO) instrument;

Four full floating suspension + suspension device;

Double locking structure belts

Left hand drive cabin

Air Conditioner

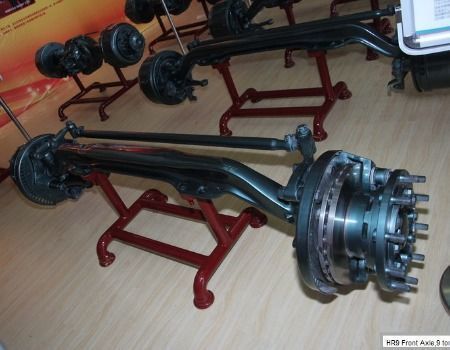

Front Axle

HR9, 9 tons loading axle, drum brake

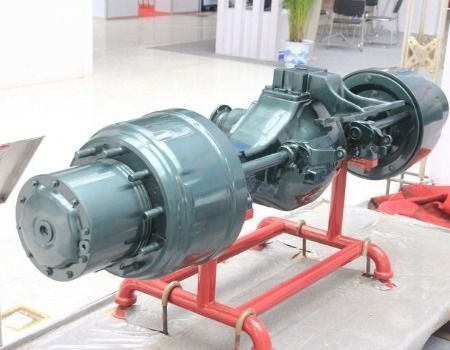

Driving Axle

HC16 axle

2x16000kg

Central single reduction+hub reduction,casting axle housing

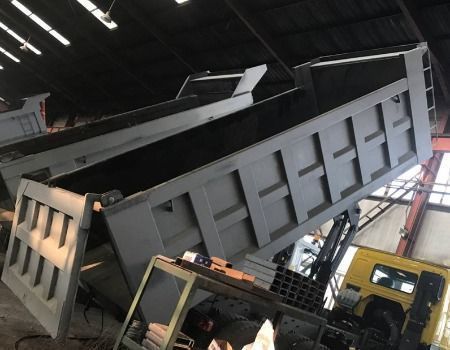

Cargo Box

5400x2300x1500mm. 18.5m3

Ventral hydraulic lifting

Bottom 8mm and side 6mm (for sand or small stone work)

“#” Type beams design

Sinotruk 380HP HOWO 10 Wheelers Dump Truck

Product Description Of Sinotruk 380HP HOWO 10 Wheelers Dump Truck

Stock HOWO 6X4 380HP 30 Ton SINOTRUK Dump Truck for Philippines

The popular dump truck models include: SINOTRUK HOWO 380hp 6X4 10 wheelers 20 cubic meters dump truck, sinotruk A7 & T7H 380hp 10 wheelers 30 tons 20 cubic meters tipper, SINOTRUK howo 8X4 12 wheeler 40 tons 28cbm, 30cbm, 33cbm & 36cbm dumper.

According to clients’ requirements, we can customize different  loading capacity, dump box, color & put logo of customers’ company.

Specification

SINOTRUK HOWO 6×4 DUMP TRUCK

Manufacture

Made in 2019 year

CNHTC, China

Body

Carriage Internal Dimensions(mm)

5600x2300x1500



Size (m3)

20m3 ( 16-21m3 for option )



Steel thickness of Carriage(mm)

Floor: 8mm/Side: 6mm



Steel

Q235



Hydraulic Lift of Carriage

Middle Lift ( HYVA cylinder or front lift for option )

Weight in kg

Kerb weight (Kg)

12770



Loading capacity (Kg)

30000

Dimensions

Dimensions

Length(mm)

8645





Width(mm)

2550





Height(mm)

3450



Wheel base (mm)

3800+1350

Performance

Maximum driving speed (km/h)

75



Fuel consumption  (1/100 km)

35

Cab

Model

SINOTRUK HW76 Lengthen cab



single bunk, new type seat, adjustable steering wheel, EURO new type heating & ventilating system, Germany VDO instruments, safety belts, exterior sun visor, stereo radio/cassette recorder, left driving, air conditioner

Engine

Model

CNHTC D10.38-40(Euro 4)



Type

6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection



Horsepower

380hp (420hp for option )



Maximum output Kw/r/min

276/2000



Maximum torque N.m/r/min

1560/1200-1500



Make SINOTRUCK (CNHTC), Euro IV emission standard, Thermostat with 80ºC opening begin, Rigid fan

Transmission

SINOTRUK HW19710 transmission , 10 forward and 2 reverse



I       II       III    IV      V     VI     VII     VIII     IX     X



14.28  10.62   7.87  5.88   4.38   3.27   2.43    1.80    1.34    1



R1-13.91      R2-3.18

Front Axle

SINOTRUK HF9 Front Axle,new 9-ton front axle of equipped with drum brakes.

Rear Axles

SINOTRUK HC16 Heavy reduction drive axle, STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio: 5.73;

Brake System

Service brake:dual circuit compressed air brake
Parking brake (emergency brake):spring energy,compressed air operating on rear wheels

Wheels & Tyres

Rims: 10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire.( tubeless for option )

Oil Tank

Square type-300L Aluminum alloy fuel tank

Sinotruk HOWO 10 Wheeler Dump Truck Dimensions

 Specs for SINOTRUK HOWO 6X4 heavy dump truck tipper truck dumper truck

Truck ModelZZ3257N3247C
Truck BrandSINOTRUK
Dimension
(Lx W x H)(unloaded)(mm)
8614x2496x3450mm
Cargo body size
(L*W*H, mm) (mm)
5400x2300x1500 mm
Cargo thickness(mm)Bottom:8mm, Side:6mm
Curb weight(kg)12290
Loading Weight(kg)40000
Fuel tanker capacity(L)300
Fuel consumption(L/km)23L/100 km
Engine Model
(Steyr technology, made in China)
Fuel type  Diesel
Horse Power, max(kw/rpm)336hp
EmissionEURO II
ModelWD615,water-cooled,four strokes,6 cylinders in line with water cooling , directly injection
TransmissionModelHW15710, 10 forwards and 2 reverse
Steering system

ModelZF8118 hydraulic steering with power assistance
Front axleHF9 ,Steering with double T-cross section beam
Rear axleHC16,
Pressed axle housing, central double reduction with differential locks between axles and wheels
Tyre12R20, 10+1 unit
